Double Cover

heads
heads

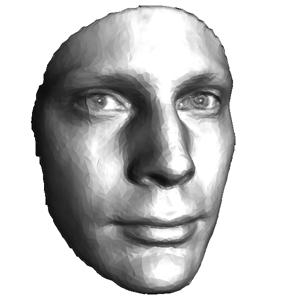

Front view of the doubled face
Back view of the doubled face

Algorithm Description

Double cover a mesh with boundaries to form a symmetric closed mesh.

Input and output

  • The input is a mesh with boundaries.
  • The output is the symmetric closed mesh obtained by double covering the input mesh.

Command

   double.exe face.nf5k.m 2face.m
   The output is
   2face.m

Computational Stability

   The computation is purely combinatorial, it is very stable.

Example

   The input mesh has 5k faces. The computational time is less than 1 seconds on a PC with 3.0 GB of RAM, 3.60 GHz CPU. The data set and the source can be downloaded.
