Holomorphic 1-Form

heads
heads
heads
heads

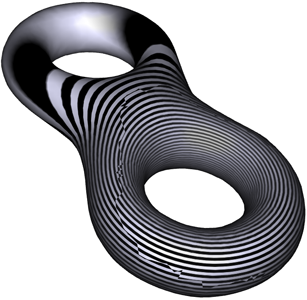

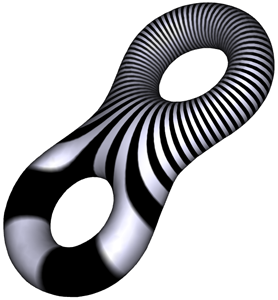

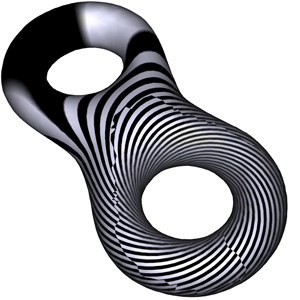

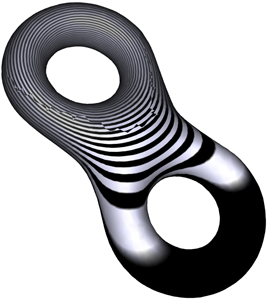

eight.u_0.m
eight.u_1.m
eight.u_2.m
eight.u_3.m
heads
heads
heads
heads

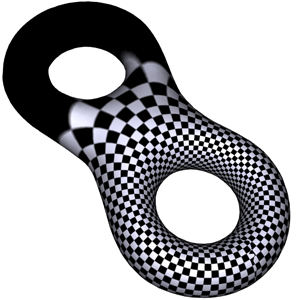

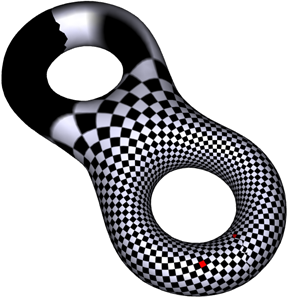

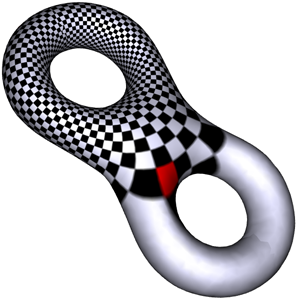

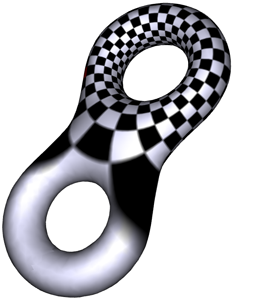

eight.uv_0.m
eight.uv_1.m
eight.uv_2.m
eight.uv_3.m

Algorithm Description

Holomorphic 1-form computes the holomorphic 1-form basis on a high genus closed surface. According to Hodge theory, each cohomologous class has a unique harmonic form, and corresponds to a unique holomorphic 1-form. The algorithm is linear.

Input and output

The inputs are the basis of harmonic 1-forms on the mesh, which are the output of harmonic 1-form algorithm.

  • Harmonic 1-form basis, e.g. eight.w_0.m eight.w_1.m eight.w_2.m eight.w_3.m.


The output are the basis of holomorphic 1-forms,
  • Holomorphic 1-form basis recorded as edge traits eight.w_0.m eight.w_1.m eight.w_2.m eight.w_3.m.

Convergence, Stability and Efficiency

The computational process is stable and converges fast.

Example

   The input genus two mesh has 7k faces. The computational time is about 2 seconds on a PC with 3.0 GB of RAM, 3.60 GHz CPU. The data set and the source can be downloaded.

Command

  1. Compute the homology group basis:

    homology.exe eight.m eight.open

    This generates eight.open_0.m eight.open_1.m eight.open_2.m eight.open_3.m
  2. Compute the harmonic 1-forms:

    harmonicform.exe eight.m eight.open_0.m eight_w_0.m eight.u_0.m
    harmonicform.exe eight.m eight.open_0.m eight_w_1.m eight.u_1.m
    harmonicform.exe eight.m eight.open_0.m eight_w_2.m eight.u_2.m
    harmonicform.exe eight.m eight.open_0.m eight_w_3.m eight.u_3.m
  3. Compute the holomorphic 1-forms:

    holomorphicform.exe eight.w_0.m eight_w_1.m eight.w_2.m eight.w_3.m
    The outputs are

    eight.duv_0.m eight.duv_1.m eight.duv_2.m eight.duv_3.m
  4. Compute a fundamental domain

    cutgraph.exe eight.m eight.cut.m
    slice.exe eight.cut.m eight.open.m
  5. Integarte holomorphic 1-form on the fundamental domain

    integrate.exe eight.duv_0.m eight.open.m eight.uv_0.m
    integrate.exe eight.duv_1.m eight.open.m eight.uv_1.m
    integrate.exe eight.duv_2.m eight.open.m eight.uv_2.m
    integrate.exe eight.duv_3.m eight.open.m eight.uv_3.m
